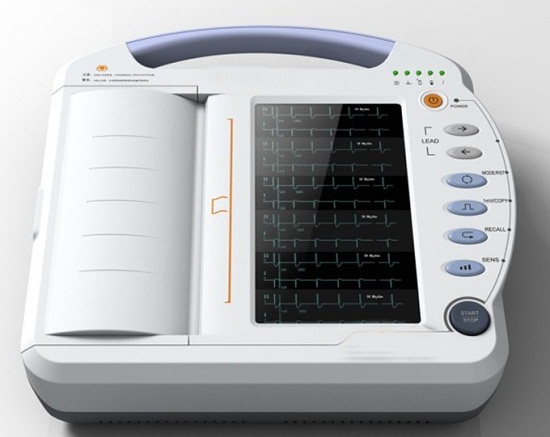

VE-1212A is a twelve channels ECG machine, with 10 inches, high resolution display, full touch screen. Support A4 size paper, printing 12 lead waveforms, with interpretation, support rhythm lead printing. Support SD card, and ECG software in PC.
Features:
1. 1024*600 10inch color touchscreen display
2. Twelve channel ECG machine with interpretation
3. 12-lead ECG simultaneous acquisition
4. Multiple operation modes: Manual/Auto/Arrhythmia Analysis Modes
5. 12-channel recording with a rhythm lead
6. Digital filters eliminate EMG, AC, Baseline Drift interference
7. Built in rechargeable Li-ion battery, 2 hours continuous working
8. Adapt 110-240V, 50/60Hz AC power supply
9. 250 patients save/replay
10. Built in USB/RS232 interface
Specification:
Power Supply: 100-120V or 220-240V, 50/60Hz or internal rechargeable battery with lifetime of 60 minutes
Safety: Class I, type CF
LCD display: Backlit high resolution 1024 x 600 10 inch touchscreen display 12 channel ECG waveform simultaneously
Leads: 12 STANDARD or CABRERA leads
Defibrillation protection: Internal, according to current regulations
Recording modes: Manual, Automatic sequential, Automatic simultaneous, Rhythem lead selectable
Print Channels: 12 channels, Rhythem lead selectable
Writing system: High-resolution thermal printer (8 dots/mm); Horizontal 40 dots/mm
Thermal paper: 216mm wide 20M thermal paper in Z-fold packers or in rolls
Paper speed: 5; 6.25; 10; 12.5; 25; 50mm/s ± 3%
Recording sensitivity: Auto or Manual: 1.25; 2.5; 5; 10; 20; 40mm/mV ±3%
Input dynamics: ±500 mV @ 0 Hz ± 10 mV in the pass band
Input impedance: 50 MΩ DC
Power requirements AC220V/50Hz
Common-mode rejection: > 90 dB
Frequency response: 0.05 to 150 Hz
Time constant: >3.3 s
Data acquisition: 12 bits; 1000 samples/sec/channel when printing, filtering and computing
Fuse Specification: 2Φ5x20mm
Case storage: 150 cases at least, can be stored on external SD card
Patient Cable: Standard 10 leads
Resolution: 3.125 uV/bit
Filters: Low pass filter off 75 Hz, 100 Hz, 150 Hz
Muscle filter: 25 or 35 Hz digital filters (-3 dB/oct)
AC filter: digital notch filters 50 or 60 Hz selectable, – 20 dB or better
Drift filter: 0.5 Hz high pass linear phase digital filter
Net weight: 3.7kg (8.14 lb)
Gross weight: 5.2kg (11.44 lb)
