Six channels ECG machin, with 7 inches full touch screen LCD, with interpreatation, support Roll type or Z-folded paper.
Features:
1. 480*800 7inch touchscreen display
2. Six channel ECG machine with interpretation
3. 12-lead ECG simultaneous acquisition
4. Multiple operation modes: Manual/Auto/Arrhythmia Analysis Modes
5. 6-channel recording with a rhythm lead
6. Digital filters eliminate EMG, AC, Baseline Drift interference
7. Built in rechargeable Li-ion battery, 3 hours continuous working
8. Adapt 110-240V, 50/60Hz AC power supply
9. 250 patients save/replay

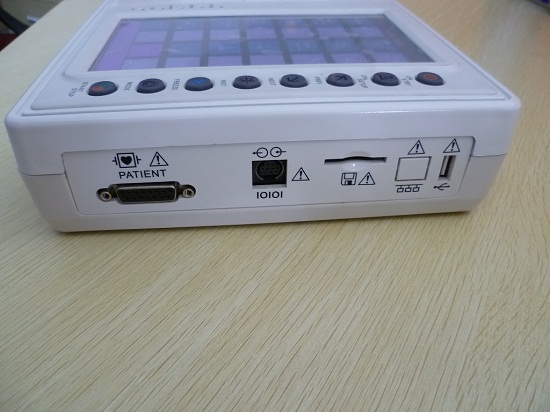

10. Built in USB/RS232 interface
Specifications:
Lead: 12 leads,Standard or Cabrera, 12 leads simulatnously acquisition
Input circuit: Floating
LCD display: 480*800 touchscreen display ECG waveform, operation conditions,Time,Heart-rate
Safety: IEC class I, typeCF
Sampling rate: 1000 samples/Sec/Channel
A/D converter: 12 bits
Recording Mode: Automatic,manual,Long Term(60Sec)
Filter: AC(50Hz or 60Hz, -20dB)
EMG: (25Hz/35Hz/45Hz/75Hz/100Hz,-3dB)
Drift (0.5Hz,-3dB)
CMRR: > 80dB and 100dB(AC filter in use)
Input circuit current: <0.1uA
Input Impedance: > 50Mohms
Time constant: > 3.2S
Frequency Response: 0.05–150Hz,-3dB
Noise Level: <15uV
Sensitivity: 1.25; 2.5; 5; 10; 20; 40mm/mV±3%
Calibration Voltage: 1mV±3%
Patient Current Leakage: <10uA
Protection: Protect from defibrillation and pace-making
Recording mode: Thermal printer; 8dot/mm(Vertical), 40 dot/mm (Horizontal,at 25mm/s)
Print Speed: 5; 6.25; 10; 12.5; 25; 50mm/s±2%
Paper size: Roll type (110mmX15m) or Z-folded
Patient Cable: Standard 10 leads
Power requiremtns: AV220V/50Hz
Built-in battery: Li-ion rechargeable battery pack, 11.1V
Fuse Specification: 2φ5x20mm
Dimension： 285*200*50mm(WxDXH)
Net weight： 2.5kgs
