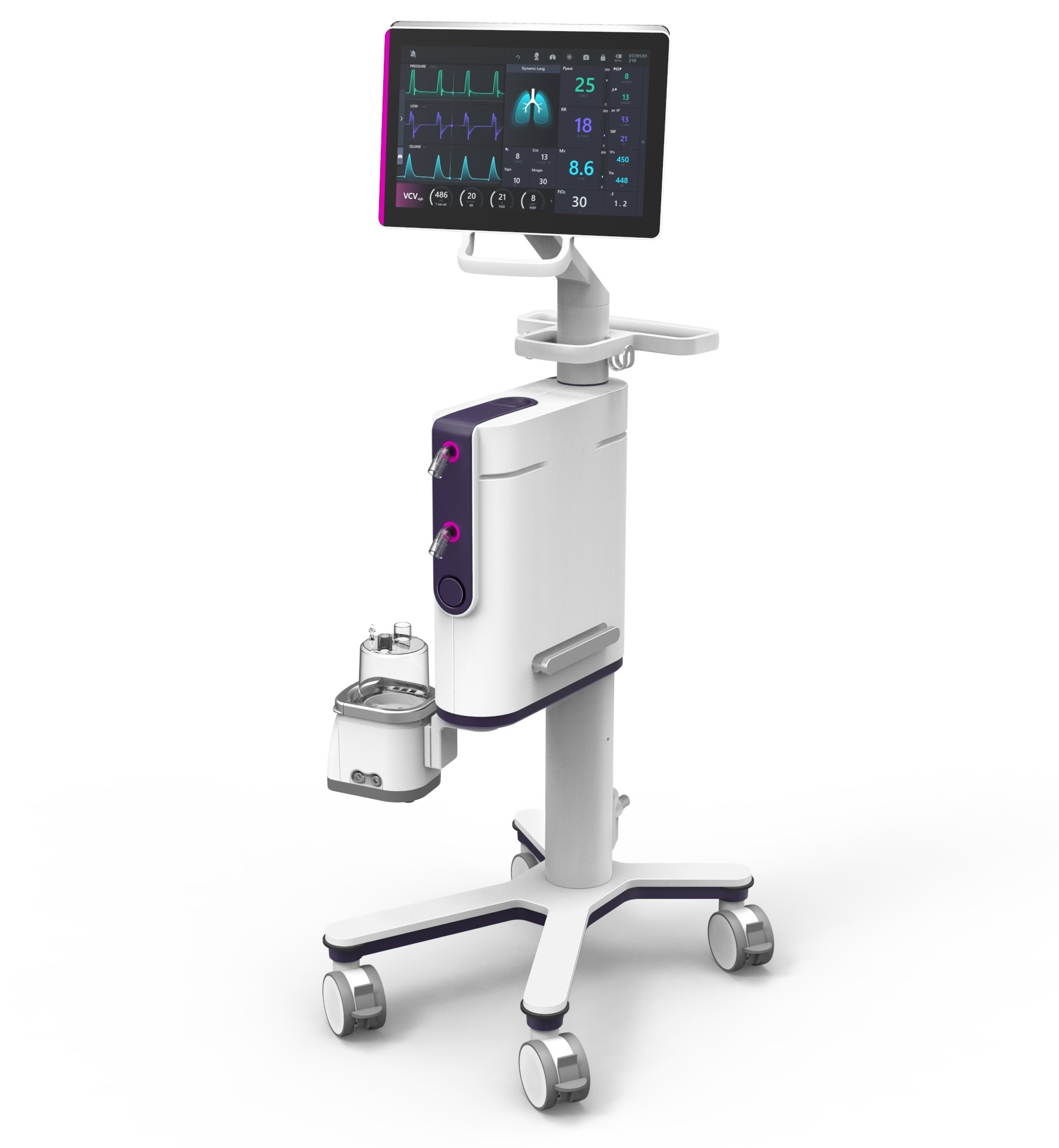

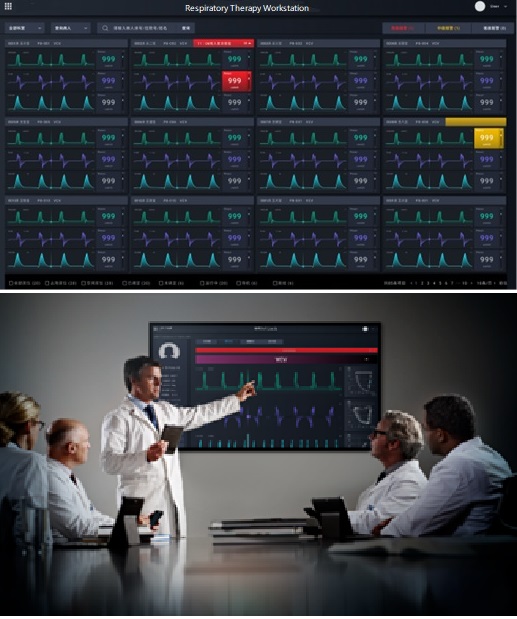

V8 is a high-end ICU intelligent ventilator, which belongs to pneumatic ventilator and can provide comfortable long-term treatment for patients. The machine is not only beautiful in appearance, but also stable in performance and advanced in technology. It uses world-class core components and is designed by international teams. It has various ventilation modes and is also intelligent, support HL7 and Respiratory Therapy Workstation. It is very suitable for ICU wards with sufficient budget.
Technical Specification
Physical Specification
Dimensions (HxWxD) 1600mm×500mm×650mm
Weight
55 kg (two cylinders included)
35 kg (trolley included)
21 kg (trolley excluded)
Note: The overall weight covers the main unit (including one
battery), display and trolley, and does not include the breathing
tube, CO2 module, SpO2 module, support arm and humidifier
Display
Screen 17” TFT display
Display resolution 1920 × 1200
Brightness Adjustable
Communication interface
Communication
interface
RS 232, HDMI, USB, USB OTG, LAN2
Ventilation Specifications
Patient type Adult, pediatric, infant
Ventilation mode
Invasive modes
VCV, PCV, PRVC, SIMV (V) + PS, SIMV (P) + PS, SIMV (PRVC) + PS, CPAP, PSV, DualPAP, VSV
Non-invasive modes
PCV, PSV, CPAP, HFNC, DualPAP, SIMV(P)+PS
Control Parameters
O2 concentration 21 ~ 100%
VT
Adult: 100 ~ 4000 mL
Pediatric: 10 ~ 300 mL
Infant: 2 ~ 100 mL
RR (Respiratory rate)
Adult/pediatric: 1 ~ 100 bpm
Infant: 1 ~ 150 bpm
Respiratory rate in
SIMV mode
Adult/pediatric: 1 ~ 100 bpm
Infant: 1 ~ 150 bpm
I:E 4:1～1:10
Ti 0.1 ~ 10 s
Tslope (Pressure rising
time) 0 ~ 2.0 s
Tpause OFF, 5% ~ 60%
Flow
Adult: 6 ~ 180 L/min
Pediatric: 6 ~ 60 L/min
Infant: 2 ~ 30 L/min
Pinsp 1 ~ 100 cmH2O
Psupp 1 ~ 100 cmH2O
Phigh 1 ~ 100 cmH2O
Plow 0, 1 ~ 50 cmH2O
PEEP 0 ~ 50 cmH2O
Ftrig
Adult/pediatric: 0.2 ~ 20 L/min
Infant: 0.1 ~ 5 L/min
Ptrig -20 ~ -0.1 cmH2O
ETS (Expiratory trigger
sensitivity) 5%~85%
Sigh
Sigh switch
ON, OFF
(This function is OFF by default.)
Tinterval 1-180 min
cycles 1-20
PEEPint 0-20 cmH2O
Automatic Tube Compensation
Tube type ET Tube
Tube size 2~12 mm
Tube compensation 0~100%
HFNC
O2 concentration 21~100%
Fbasic
Adult/pediatric: 2 ~ 60 L/min
Infant: 2 ~ 20 L/min
CPAP 0 ~ 50 cmH2O
Automatic Leakage Compensation
Maximum leakage
compensation flow
0~100 L/min
Monitoring parameters
Airway pressure -45 ~ 120 cmH2O
VT 0 ~ 6000 mL
RR (Respiratory rate) 0 ~ 200 bpm
MV 0 ~ 100 L/min
Resistance 0 ~ 600 cmH2O/(L/s)
Compliance 0 ~ 300 mL/cmH2O
O2 concentration 15 ~ 100%
RSBI 0 ~ 9999 bpm/L
WOBp 0 ~ 20 J/L
WOBv 0 ~ 20 J/L
WOBI 0 ~ 20 J/L
P0.1 0 ~ 30 cmH2O
NIF -45 ~ 0 cmH2O
PEEPi 0 ~ 120 cmH2O
TC 0 ~10 s
I:E 150:1 ~ 1:150
Peak flow 0 ~ 300 L/min
Expiratory flow 0 ~ 200 L/min

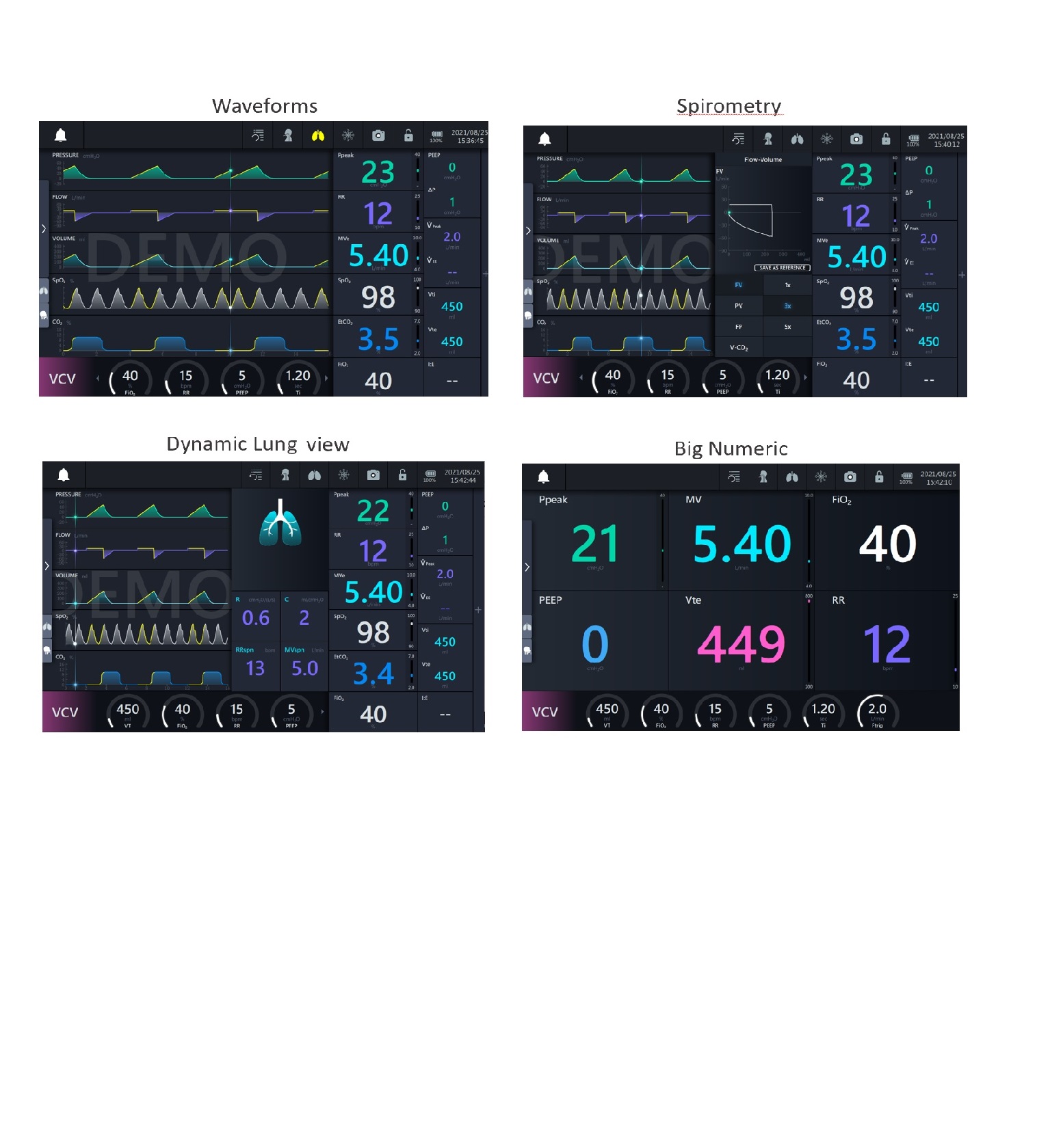

Waveforms
Pressure-time, Flow-time, Volume-time
Optional: CO2-time, SPO2-time
Loops Volume-Pressure, Flow-Volume, Flow-Pressure, CO2-Volume
Alarm settings
VT
High
Adult: 110 ~ 6000 mL, OFF
Pediatric: 25 ~ 600 mL, OFF
Infant: 3 ~ 200 mL, OFF
Low OFF, 50 ~ 5995 mL
MV
High
Adult: 0.2 ~ 100.0 L/min, OFF
Pediatric: 0.2 ~ 60.0 L/min, OFF
Infant: 0.02 ~ 30.0 L/min, OFF
Low
Adult: OFF, 0.1 ~ 50.0 L/min
Pediatric: OFF, 0.1 ~ 30.0 L/min
Infant: OFF, 0.01 ~ 15.0 L/min
Paw High 10 ~ 105 cmH2O
RR
High 2 ~ 160/min, OFF
Low OFF, 1 ~ 160/min
Apnea alarm 5 ~ 60 s
Other alarms
EtCO2
InCO2
SpO2
Air source
O2 source
Trend
Type Graphic (curve)
Length 72 h
Content Changes in parameter measurement results. Event Logs
Type Alarms, settings, and functions
Max number 5000
Histogram
Length 72 h
Content
Tidal volume (horizontal axis) – Repiratory cycles (vertical axis)
Repiratory rate (horizontal axis) – Repiratory cycles (vertical
axis)
Peak pressure (horizontal axis) – Repiratory cycles (vertical
axis)
Minute volume (horizontal axis) – Repiratory cycles (vertical
axis)
Screen Capture
Max number At least 20 pictures
Ventilator components
O2 sensor
Type Chemical oxygen, paramagnetic sensor
Response time
Chemical oxygen 30 s
Paramagnetic sensor 20 s
Infant flow sensor
Flow range -40 ~ 40 L/min
Dead space 1.3 mL
Resistance 4.34 cmH2O/(L/min)
SideStream CO2 Module
Displayed numeric EtCO2, InCO2
EtCO2 measurement
range
0 ~ 25%
Resolution 0.1
Waveforms CO2-time
Sampling rate 50 ± 10 sml/min
System response time < 3 s
Rise time ≤ 350 ms
EtCO2 High alarm limits 1 ~ 26%
EtCO2 Low alarm limits OFF，0 ~ 25%
TiniStream CO2 Module
Displayed numeric EtCO2, InCO2
EtCO2 measurement
range
0 ~ 20%
Resolution 0.1%
Waveforms CO2-time
Sampling rate 50ml/min ± 10ml/min
System response time ≤ 3 s (length of sampling line: 2 m)
Rise time ≤ 180 ms
EtCO2 High alarm limits 1 ~ 20%
EtCO2 Low alarm limits OFF，0 ~ 19%
MainStream CO2 Module
Displayed numerics EtCO2, InCO2
EtCO2 measurement
range
0 ~ 25%
Resolution
Within the EtCO2 range of 0%~15%, the error is ±(0.2%+2% of
the actual reading)
Waveforms / Loop CO2-time
System response time < 1 s
EtCO2 High alarm limits 1 ~ 26%
EtCO2 Low alarm limits OFF，0 ~ 25%
SpO2 module
Displayed numeric SpO2, PR
SpO2 measurement
range
0 ~ 100%
PR measurement range 25 ~ 250/min
Waveform Pleth
SpO2 High alarm limits 81 ~ 100%
SpO2 Low alarm limits 80 ~ 99%
Operation Data
Environmental specifications
Temperature
Operation 10 ~ 40ºC
Storage and transport -20 ~ 60ºC
Relative humidity
(non-condensing)
Operation 15% ~ 95% R.H. Storage and transport 10% ~ 95% R.H. Atmospheric pressure
Operation 54 ~ 106 kPa
Storage and transport 50 ~ 106 kPa
Gas supply
Gas type Air, O2
Input connector NIST or DISS
Gas source pressure 280 ~ 650 kPa
Maximum flow ≥ 180 L/min
Power and Battery Backup
Input voltage 100 ~ 240 V
Input frequency 50/60 Hz
Input current 2.5 ~ 1.2 A
Fuse T3.15 AH 250 V × 2, φ5 × 20
Number of battery
1 (standard)
2 (optional)
Rated battery voltage 11.1 VDC
Battery type Lithium ion battery
Battery capacity The capacity of single battery is 7800 mAh
The capacity of two batteries is 15600 mAh
Battery run time
At least 90 minutes (when a new fully charged battery is used in
typical operating mode)
At least 180 minutes (when two new fully charged batteries are
used in typical operating mode)
Battery charging time About 7 hours
Special Functions and procedures
Inspiratory hold
Expiratory hold
PV tool
Automatic tube compensation
Sigh
Manual ventilation
Nebulizer
Suction
Flow support
P0.1
Stress index
Maximum negative inspiratory pressure
PEEPi
Esophageal and gastric pressure monitoring
PTP
Work of breathing
Dynamic lung displa
