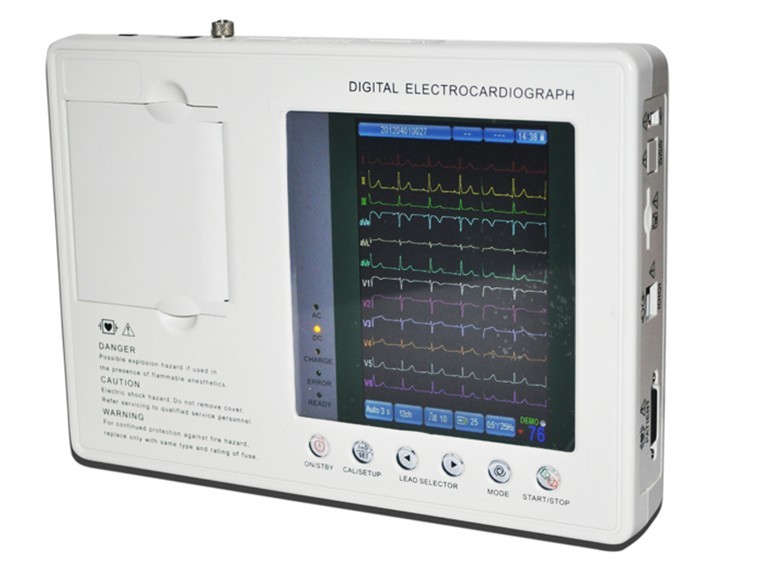

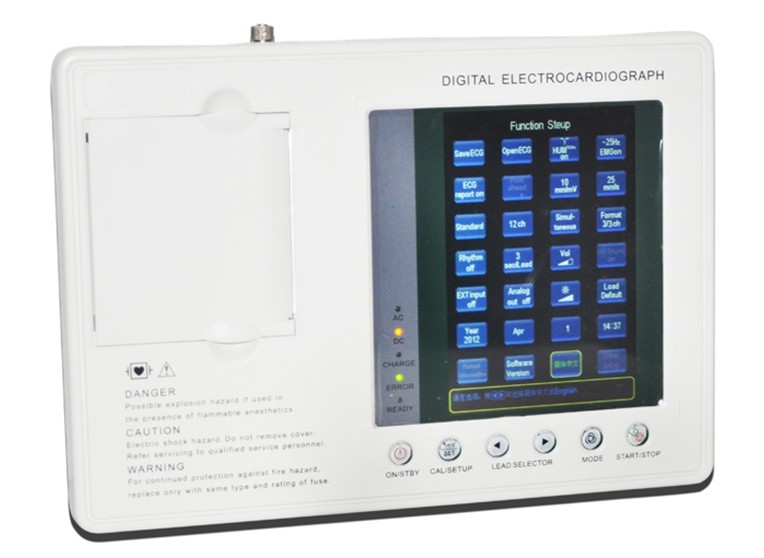

VE-1203 7 inches big color LCD 3 Channel ECG machine
Features:
1. 7 inch 480×680 color graphic LCD display, full touch screen is optional
2. Three channel ECG machine with interpretation
3. 12-lead ECG simultaneous acquisition
4. Multiple operation modes: Manual/Auto/Arrhythmia Analysis Modes
5. 80mm 3-channel recording with a rhythm lead
6. Digital filters eliminate EMG, AC, Baseline Drift interference
7. Built in rechargeable Li-ion battery, 3 hours continuous working
8. Adapt 110-240V, 50/60Hz AC power supply
9. 250 patients save/replay
10. Built in USB/RS232 interface
Specifications:
Lead: 12 leads, Standard or Cabrera, 12 leads simultaneously acquisition
Input circuit: Floating
LCD display: 480*680 7 inches color screen LCD, display ECG waveform, operation conditions, Time, Heart-rate
Safety: IEC class I, type CF
Sampling rate: 1000 samples/Sec/Channel
A/D converter: 12 bits
Recording Mode: automatic, manual, Long Term(60Sec)
Filter: AC(50Hz or 60Hz, -20dB)
EMG (25Hz/35Hz/45Hz/75Hz/100Hz,-3dB)
Drift (0.5Hz,-3dB)
CMRR: > 80dB and 100dB(AC filter in use)
Input circuit current: <0.1uA
Input Impedance: 50 MΩ DC
Time constant: > 3.2S
Frequency Response: 0.05–150Hz,-3dB
Noise Level: <15µV
Paper size: 80mm/18m roll type or Z-fold thermal paper
Case storage: 150 cases at least, can be stored on external SD card
Power requirements: AC220V/50Hz
Built-in battery: Li-ion rechargeable battery pack, 11.1V
Fuse Specification: 2Φ5x20mm
Patient Cable: standard 10 leads
Patient ID input: No
Dimension: 285(W)*200(D)*50mm(H) 11.2″ x 7.87″x 2.06″ (inch)
Net weight: 2.0 kg (4.41 lb)
Gross weight: 3.6 kg (8.08 lb)
