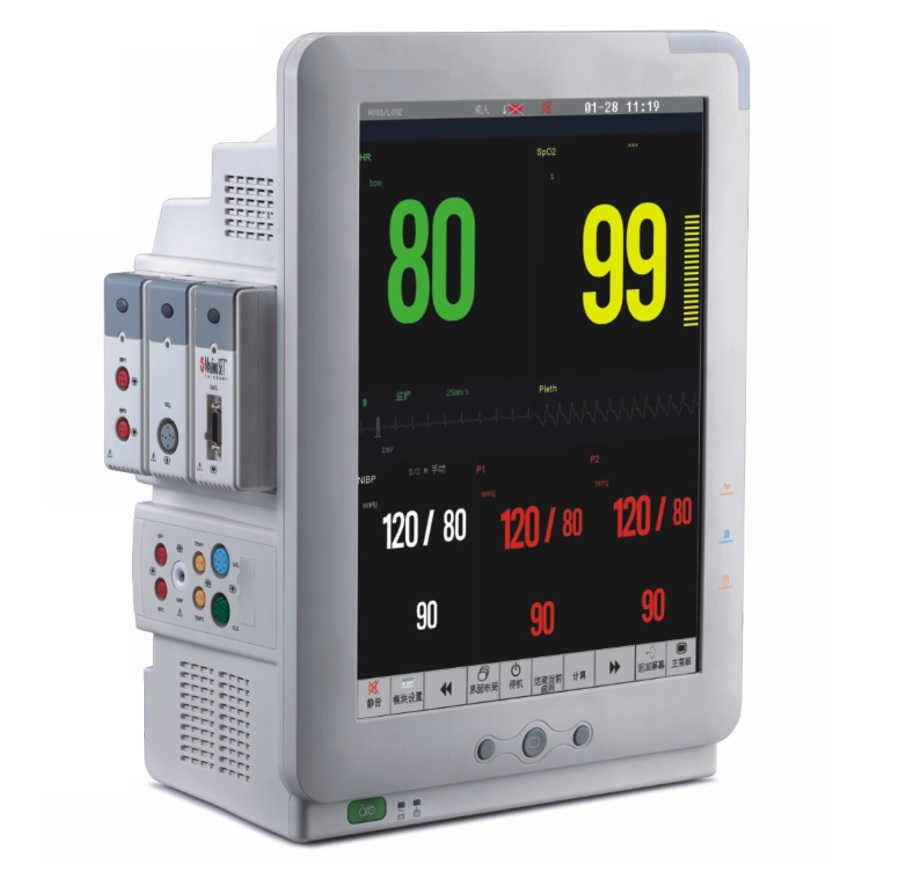

This is a user firendly modular monitor, it allows you to add more function and parameters when needed, very flexible and convenient to customise your monitoring to specific patients. The plug-and-play design and intuitive navigation is convenient for clinicians to setup and start monitoring patients easily. It is ideal to be used in operation room or for general monitoring.
·15” anti-glare color TFT LCD display
·Standard touch screen config with knob and back light button, also support Mouse7&Keyboard input
·Independent Physiological &Technical, Visual & Audio alarm system
·Standard Configuration of 3-lead ECG, RESP, NIBP, SpO2, PR, Temp
·Three standard module slots supporting plug- and – play for modules like IBP, TEMP, EtCO2 and AG etc
·Abundant extension interfaces including Nurse call socket, VGA port and USB port etc
·Rolling Stand or Wall Mount available
Standard configuration:
5-lead ECG,NIBP,SPo2,TEMP
Mainunit: 2 Standard module slot, Touch Screen, 1 RJ45 nepenthe socket, 1 Defibrillation output(BNC connector), 1 Nurse Call socket, 1 VGA port, 2 USB1.1port, 1Lithium rechargeable battery.
Optional Configuration :
Nellcor/Masimo SpO2、IBP、TEMP、Recorder、Suntech NIBP、
Mainstream/ Sidestream/Microstream EtCO2、 Mainstream/ Sidestream AG
5-lead Snap Connector ECG Cable (AHA)(12pin) (AQ)
ECG alligator clip Electrodes (Reusable, Snap Connector, 5pcs/set)
BLT digital SpO2 ear clip reusable sensor (9pin VET APK)
SpO2 extension cable (A Series 12Pin to 9Pin)(A/Q Series)
NIBP PVC hose, 3m，with A Series connector
Adult Cuff with connector M5124(25cm-35cm)
Rechargeable Lithium battery (11.1V/4000mAH) Li1104C (M series)
Power cord (Europe)
Ground Cable
User’s Manual
Size&weight
Size : 335mm×366mm×172mm
Weight:≤6kg
Standard module slot:3
Display:
15″ Color TFL-LCD
Resolution: 768×1024 pixels
Power supply:
Power voltage:AC 100~240v 50/60Hz
Input Current: 1.1~0.5A
Safety class: Category I
Battery:
Type: Rechargeable lithium ion battery
Operating time under the normal use and full charge: ≥210minutes
Recorder (Option)
Paper width: 50 mm (1.97 in)
Paper length: 15m Paper Speed: 12.5/25/50(mm/sec)
Traces: Maximum 3 tracks
Recording way: Real-time recording, Periodic recording, Alarm recording
Alarm
Level : Low, medium and high
Indication: Auditory and visual
Patient Physiological alarm light color: Yellow & Red:
Equipment Technical Alarm Light color: Blue
Supports Pitch Tone and multi-level volume
Input device
Touch screen: standard config
Knob: standard config
Mouse7 & Keyboard input: Support
Trend&Reviewing:
Trend: Lond trend:168h,minimum resolution is 1min (store when power goes off)
High resolution trend:2h, minimum resolution is 5s
NIBP measurement reviewing: 1000 groups
ARR event: 128 groups of ARR event and the associated waveform.
Alarm events: 128 groups of parameter alarm events and associated parameter
Waveform at the alarm moment
Full Disclosure waveform: 96 hours for 3 waveforms (with 4G SD card)
Safety: IEC60601-1 Approved, CE marking according to MDD93/42/EEC
Performance:
ECG
Lead type 3 lead: I, II, III
5 lead: I, II, III, aVR, aVL, aVF, Vx
Gain: 2.5 mm/mV（×0.25）, 5 mm/mV（×0.5）, 10 mm/mV （×1）,20 mm/mV（×2）, 40 mm/mV（×4）, Auto
CMRR: Diagnostic mode ≥ 89 dB
Monitor mode ≥ 105 dB
Surgery mode ≥ 105 dB
Frequency response (-3d):
Monitor mode 0.5~40Hz
Surgery mode 1~25Hz
Diagnostic mode 0.05~150 Hz
Input impedance: ≥5.0 Mohm
ECG signal range: ±5%
Baseline recovery
Monitor mode: ≤ 3 s;
Surgery mode: ≤ 1 s
Input impedance ≥ 5.0 MΩ
ECG signal range ± 10.0 mV
Electrode offset potential ± 500 mV
Patient leakage current < 10 uA
Standardizing signal 1 mV ± 5%
Indication of electrode separation Every electrode (exclusive of RL)
Sweep speed 12.5 mm/s, 25 mm/s, 50 mm/s
HR
Measurement range 10 bpm to 350 bpm
Resolution 1 bpm
Accuracy ±1% or ±1 bpm, whichever is greater
ST segment
Measurement range -2.0 mV to +2.0 mV
Accuracy -0.8 mV to +0.8 mV: ±0.02 mV or ±10%, whichever is greater; Over ±0.8mV: unspecified
Resolution 0.01mV
Resp
Measurement method Thoracic impedance
Lead Selected from:Ⅰ (RA-LA) or Ⅱ (RA-LL); Default: Ⅱ
Gain ×0.25, ×1，×2，×4
Bandwidth 0.25 Hz to 2.0Hz（-3dB）
Sweep speed 6.25mm/s, 12.5mm/s, 25mm/s
Measurement range 0 rpm to 150 rpm
Resolution 1 rpm
Accuracy ±2 rpm
Delay of apnea alarm 10s, 15s, 20s, 25s, 30s, 35s, 40s, 45s, 50s, 55s, 60s
NIBP
Measurement way Automatic oscillometry
Measurement range（mmHg） Horse 10~270 mmHg
Dog 0~235 mmHg
Cat 10~135 mmHg
Cuff pressure range: 0 mmHg to 280 mmHg
Resolution 1 mmHg
Pressure accuracy
Static: ±3 mmHg
Clinic: Average error: ±5 mmHg, standard deviation: ≤8 mmHg
Unit mmHg, kPa
V SpO2
Measurement range 0% to 100%
Resolution 1%
Accuracy 70% to 100%: ±2% 0% to 69%: unspecified
PR Measurement range 20bpm to 250 bpm
Resolution 1 bpm Accuracy ±1% or ±1 bpm, whichever is the greater
Nellcor SpO2
Measurement range 0% to 100%
Resolution 1% Accuracy 70% to 100%: ±2%（horse/dog） 70% to 100%: ±3%（cat） 0% to 69%, unspecified
PR
Measurement range 20 bpm to 300 bpm
Accuracy 20 bpm to 250 bpm: ±3 bpm 251 bpm to 300 bpm: unspecified
Resolution 1 bpm
TEMP
Measurement way: Thermal resistance way
No. of channels 8
Measurement Range 0.0℃~50.0℃ (32℉~122℉)
Accuracy 0.0℃-50.0℃: ±0.1℃ (not including the probe)
Resolution 0.1℃ Unit:Centigrade (℃), Fahrenheit (℉)
IBP
No. of channels 8
Sensitivity of transducer 5uV/V/ mmHg, ±2%
Impedance of transducer 300Ω to 3000Ω
Measurement range -50 mmHg to +300 mmHg
Resolution 1mmHg
Unit mmHg, kPa, cmH2O
Accuracy ±4 mmHg or ±4% of the reading, whichever is the greater (inclusion of transducer)
Kinds of Measurement ART, PA, CVP, RAP, LAP, ICP
Options of range: RT 0?300 mmHg, PA 0?20 mmHg,CVP 0?30 mmHg, LAP 0?50 mmHg, RAP 0?80 mmHg, ICP AUTO
ETCO2 Sidestream
Measurement way Infrared spectrum
Measurement range 0.0 % to 13.1 % (0 mmHg to 99.6 mmHg) Resolution 1mmHg
Unit %, mmHg
Accuracy <5.0 %, ±0.3 % (±2.0 mmHg) ≥5.0 %, <±10 % of the reading
Measurement range of awRR 0 rpm to 150 rpm
Calibration Offset calibration, auto/ manual; gain calibration
ETCO2 Mainstream
Warm up time: Capnogram displayed in less than 15 s, at an ambient temperature of 25℃, full specifications within 2 minutes.
Measurement range: 0% to 19.7 %（0 mmHg to 150 mmHg）
Resolution: 0.1% or 1mmHg Rise time ＜60ms Unit: %, mmHg, kPa
Accuracy: 0 mmHg to 40 mmHg, ±2 mmHg 41 mmHg to 70 mmHg, ±5% of reading 71 mmHg to 100 mmHg, ±8% of reading 101 mmHg to 150 mmHg, ±10% of reading
ETCO2 Microstream
Warm up time： Capnogram displayed in less than 20 s, At an ambient temperature of 25℃, full specifications within 2 minutes.
Measurement range 0% to 19.7 %（0 mmHg to 150 mmHg）
Resolution 0.1% or 1 mmHg Unit %, mmHg, kPa
Accuracy ：( 760mmHg，temperature is 25℃) 0 mmHg to 40 mmHg, ±2 mmHg 41 mmHg to 70 mmHg, ±5% of reading 71 mmHg to 100 mmHg, ±8% of reading 101 mmHg to 150 mmHg, ±10% of reading (when RR ＞80 rpm, all the range is ±12% of reading) Gas temperature at 25℃
Total time of system response ＜3s
Anesthetic Gas
Measurement way: Infrared spectrum
Measurement mode: Mainstream,Sidestream
Measurement parameters: CO2, N2O, agent（ISO, ENF, SEV, HAL, DES）
Resolution: 1%
Calibration: Room air calibration performed automatically when changing airway adapter (<5s)
Warm up time: < 10s. full accuracy within 1min
Measurement range and accuracy of gas
Gas Range (%) Accuracy1)
CO2 0 to 15 ±（0.3%ABS+4%REL）
N2O 0 to 100 ±（2% ABS+5% REL）
ISO，ENF，HAL 0 to 8 ±（0.2%ABS+10%REL）
SEV 0 to 10 ±（0.2%ABS+10%REL）
DES 0 to 22 ±（0.2%ABS+10%REL）
awRR measurement range 0 rpm to 150 rpm
awRR measurement accuracy ±1 rpm
Standard configuration:
Mainunit: 3 Standard module slot, Touch Screen, 1 RJ45 nepenthe socket, 1 Nurse Call socket, 2 VGA port, 2 USB1.1port, 1Lithium rechargeable battery.
Option:
Option module: Sidestream /Mainstream/ Microstream CO2 Module, Anesthetic Gas Module , IBP Module, TEMP Module,Nellcor SpO2 Module, Navigating: USB compatible mouse and keyboard
Printing: 3 channel the themal recorder
Mouting Rolling stand, wall mount
Battery: 11.1V/4.0 AH Rechargeable Lithium Battery.
Other options: External Display, Wireless Lan, Extensive Memory card, Analog Output (ECG or IBP)
