V5 is a cost-effective ventilator, which can be used in ICU or transport. The ventilator is equipped with a turbine for easy use. Stable performance, with the following features
Advanced automated adaptive assisted wide-range ventilation system with electronic microprocessor controlled by volume and pressure to fit for all types of patients from Neonates , Pediatrics to Adults.
Both invasive and non-invasive modes make the unit wide applications.
Integrated self-check system with leak check and system tightness to secure the ventilation result（POST: Power On self test).
Automatic leakage compensation by the unit provides is giving to optimize respirator settings
Two Lithium batteries guarantee the unit usage up to 6 hours.
Manual settable Inspiratory pause from 0.1-6seconds.
The unit is with automatic triggers adjustment both on flow trigger and pressure trigger.
The unit is with the“Weaning tool”package function of P0.1 & NIF functions & WOB & RSBI parameters.
The unit is with measurement of volumetric capnography of CO2 ( ETCO2 measurement function)
P-V tool
Giving an optimized PEEP will help the patient a lot in keeping the lung robust. P-V tool is the gold standard. With resvent unique technology and advance platform, a precise lung titration becomes to possible.
Intelli-Vent
For those patients with spontaneous breath, giving a synchronized ventilation support is significant. With world level synchronization algorithm, Intelli-Vent deliveries a state of art ventilation performing.
Physical Specifications
Dimensions(L*W*H)
310mm * 327mm* 493mm（main unit）
664mm * 600mm * 1520mm (with trolley）
Weight Approximately 12.0kg（main unit）, Approximately 33.0kg (with trolley）

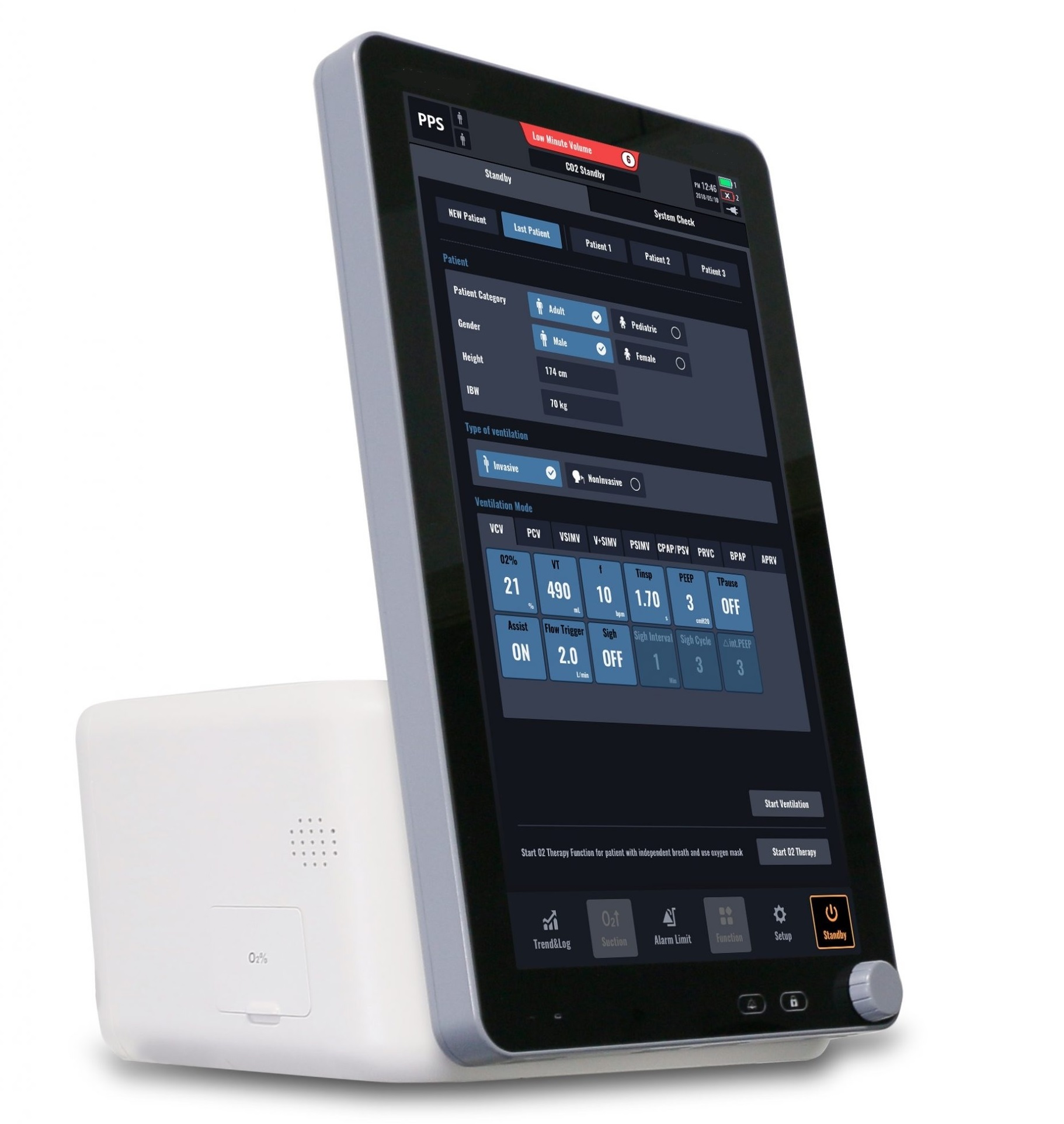

Display
Display Size 18.5 inch-TFT Touch Screen
Display Resolution (H) x (V) 1080 * 1920pixels
Brightness Adjustable
Ventilation Specifications
Patient Type Adult, Pediatric, Neonatal (Optional)
Invasive Ventilation Mode
VCV (Volume Control Ventilation)
PCV (Pressure Control Ventilation)
VSIMV (Volume Synchronized Intermittent Mandatory Ventilation)
PSIMV (Pressure Synchronized Intermittent Mandatory Ventilation)
CPAP/PSV (Continuous Positive Airway Pressure/Pressure Support Ventilation) PRVC (Pressure Regulated Volume Control)
V+SIMV (PRVC+SIMV)
BPAP (Bilevel Positive Airway Pressure)
APRV (Airway Pressure Release Ventilation)
Apnea Ventilation
Non-invasive Ventilation Mode
CPAP (Continuous Positive Airway Pressure)
PCV (Pressure Control Ventilator)
PPS (Proportional Pressure Support)
S/T (Spontanous and Timed)
VS (Volume Support)
HFNC
Please contact us for more information.
