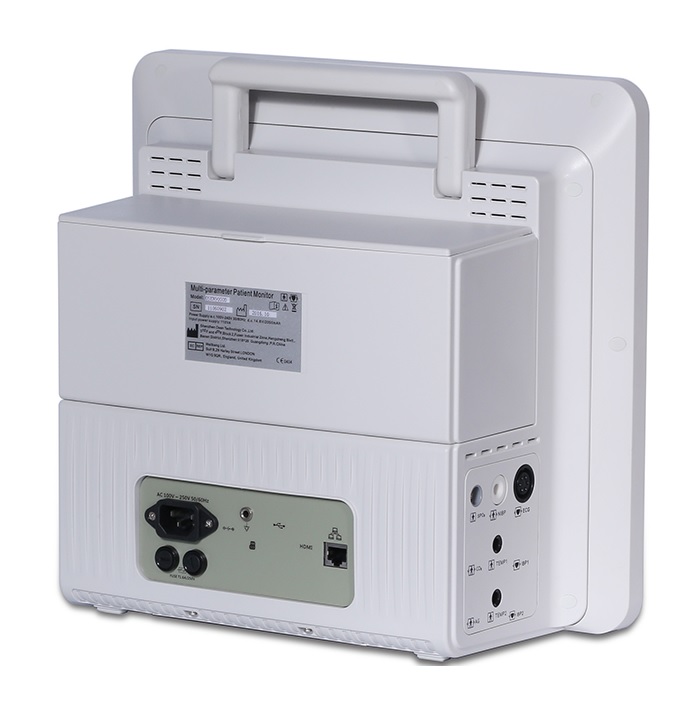

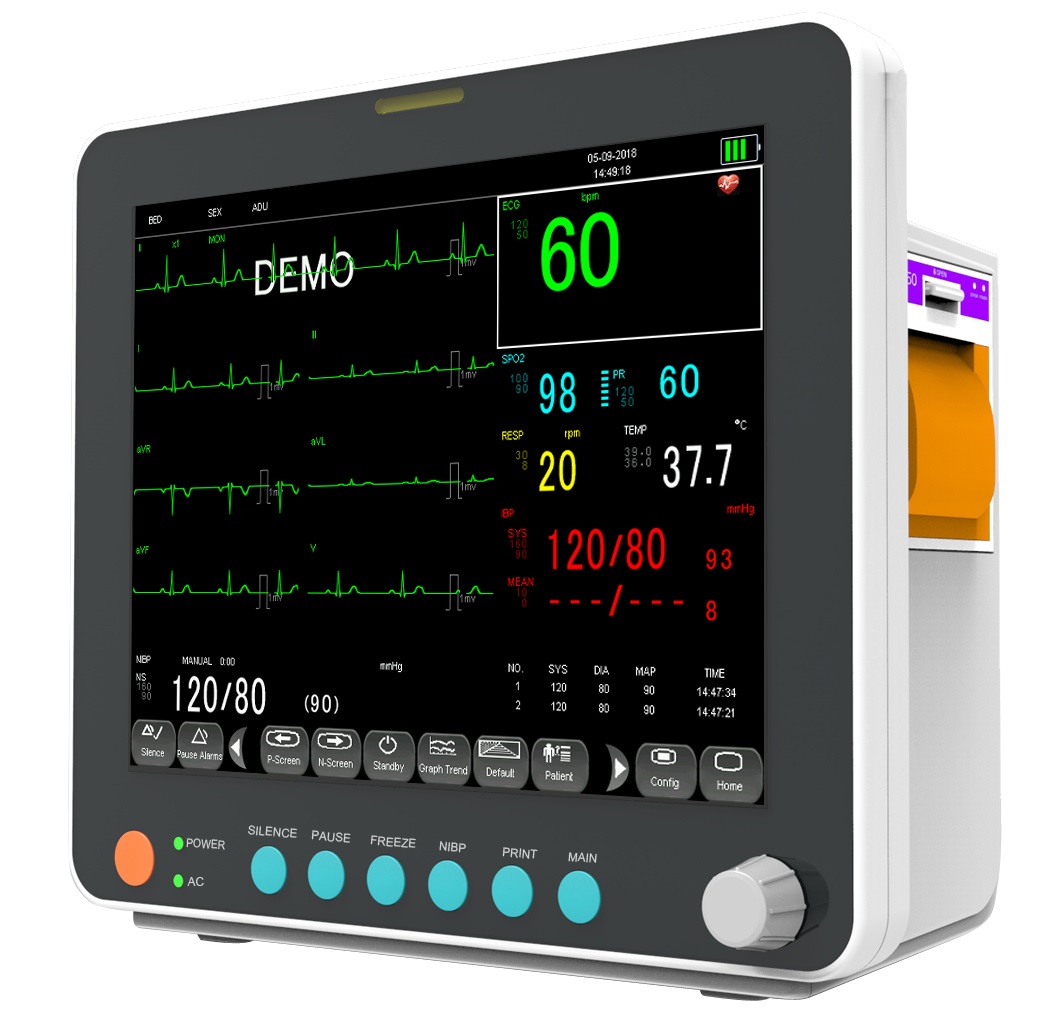

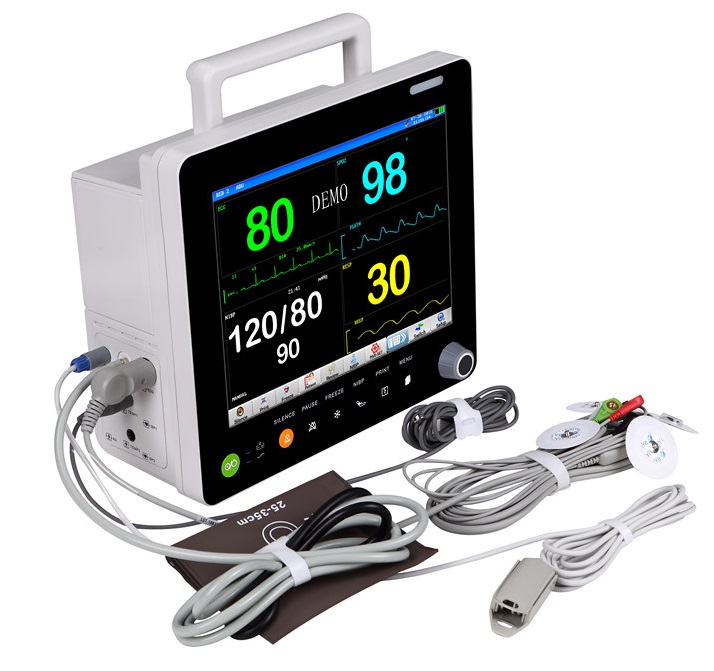

VM12 Multi-parameter Patient Monitor is adaptable to adult, pediatric and neonatal usage. It can monitor vital signals as ECG, Respiratory Rate, SpO2, NIBP, TEMP and IBP. It integrates parameter measuring modules, display and recorder in one device, featuring in compactness, lightweight and portability. Replaceable built-in battery facilitates transportation of patient. Large high-resolution display provides clear view of more than 5 waveforms and full monitoring parameters. It can be used in OR, ICU, general wards and clinics.
Features:
◆Standard configuration:SPO2,ECG,NIBP,TEMP,Resp
◆12.1inch high brightness, high resolution color TFT LED display
◆Waterproof , fanless design, low energy consumption
◆Built-in rechargeable Li-battery working up-to 5 hours for field monitoring, ambulance and short term transportation
◆Clear bright and Large character display , NIBP measurement review, one-click operation, unique Vector display
◆7 channel ECG waveform display;ST-segment analysis
◆Application:Adult,pediatric,neonate;
working mode: diagnosis,monitor and surgery
◆13 kinds of arrhythmia analysis and 15 kinds of drug dose calculation
◆High-frequency electric surgical knives(300W),defibrillation and ESU protection
◆New SpO2 technology to ensure the accuracy and low perfusion upto 0.2% measurement
◆Intelligent audio and visual alarm function
◆Optional parts:HDMI ;IBP;EtCO2;touch screen
Specifications:
ECG
ECG Cable: Standard 3/ 5 leads
3 Leads：RA、LA、LL，Leads section：I、II、III
5 Leads：RA、LA、LL、RL、V， Leads section：I、II、III/aVR、aVL、aVF/V
Gain selection:´0.25、´0.5、´1、´2
Heart Rate Range:
Adult：15 ～ 300bpm
Children/Infant/Neonate：15 ～ 350 bpm
Accuracy：±1% or ±1bpm
Resolution：1 bpm Sensitivity >200 uV(Peak to peak)
Input Resistance >5(MΩ)
Bandwidth：
Diagnosis ：0.05～130Hz
Monitor：0.5～40Hz
Surgery ：1～20Hz
ST segment deviation analysis:
Range：-0.8 mV～+0.8mV
Accuracy：±2.0mV
NIBP:
Work mode: Manual, Automatic, Continuous
Unit: mmHg, Kpa
Measurement Range:
Adult: SYS: 40～270mmHg
DIA: 10～215mmHg
MEAN:20～240mmHg
Pediatric: SYS:40～200mmHg
DIA: 10～150mmHg
MEAN:20～165mmHg
Neonatal:SYS:40～135mmHg
DIA:10～100mmHg
MEAN:20～110mmHg
Resolution:1mmHg
Measurement Type :SYS,DIA,MEAN
Overpressure protection
Adult: 300mmHg
Pediatric :240mmHg
Infant/Neonate :150mmHg
SpO2
Measurement range:0～100%
Resolution:1%
Accuracy:±2(70～100%)
Pulse rate
Measurment range:20～300bpm
Resolution:1bpm
Accuracy:±3bpm
Respiration：
Measurement Range:
Adult: 2～120BrPM
Child/Infant/Neonate：2～150 BrPM
Resolution：1 BrPM
Accuracy：±2 BrPM
Asphyxiation alarm: 10～40 seconds
Resolution:1BrPM
Accuracy:±2%
TEMP:
Channel Number: 2
Measurement Range: 0～50°C
Resolution : 0.1°C
Accuracy:±0.1°C
Response time: ≤ 3min
Power requirement
Voltage：90～245V AC 50/60Hz
Power Consumption：15W
Battery：14.8V 2200mAH Li- Battery
Battery life: 5 hours
DC: 12～20V/2A
Working Environment：
Operating Temperature:0 ～ 40 (°C)
Transport and Storage Temperature:-20～60 (°C)
Working Humidity ≤ 85 %
Transport and Storage Humidity: ≤ 93 %
